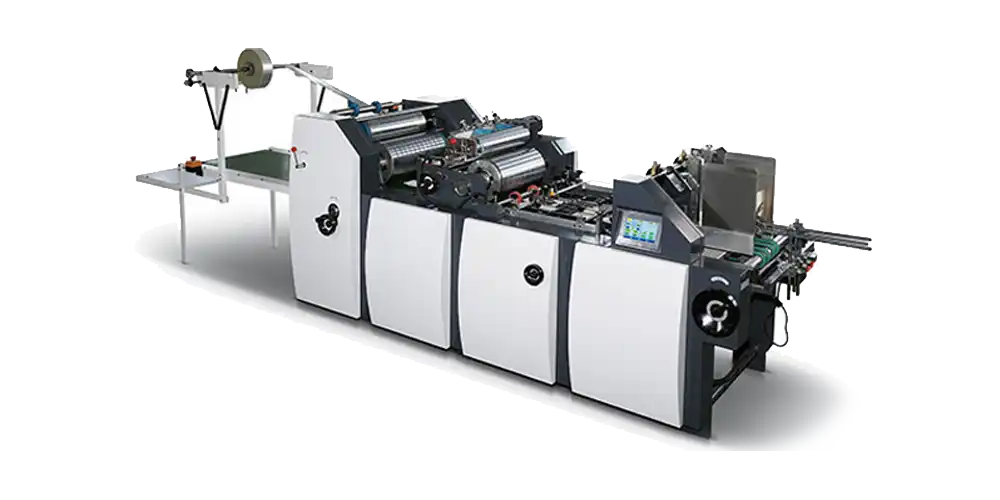

Revolutionize your packaging efficiency with VIG Graphics’ state-of-the-art 1080T/650T Normal Window Patching Machine. Engineered for precision and speed, this cutting-edge solution transforms the packaging process.


  • Window Patching Machine is widely used in the film patching to be pasted with the window of wine box, gift box, napkin box, cosmetic box etc.
  • It can also realize the function of the paper gluing, film patching, film cutting and paper collection before folding boxes.
  • Accurate fixed position automatic increment glue transmission position and automatic calculation, the numerical adjust efficiency is high, it is an advance and efficient machine to do the case window.

Technical Specifications

Max Paper650 mm x 630 mm1080 mm x 650 mm
Min Paper300 mm x 200 mm140 mm x 140 mm
Max Window300 mm x 260 mm410 mm x 300 mm
Min Window80 mm x 30 mm80 mm x 60 mm
Window Film Thickness0.05 – 0.25 mm0.05 – 0.25 mm
Max Speed6000-12000 Pcs/h6000-12000 Pcs/h
Applicable Paper200-800 g/m2200-800 g/m2
Applicable Corrugated Paper–           ≤ 7 mm
Total Power4.5 KW9 KW
Machine Weight2000 Kg5000 Kg
Dimensions4500 x 1200 x 1600 mm5000 x 1960 x 1750 mm

Achieve seamless window patching and intricate designs, ensuring top-tier quality for your projects. Explore the epitome of innovation in printing technology.
