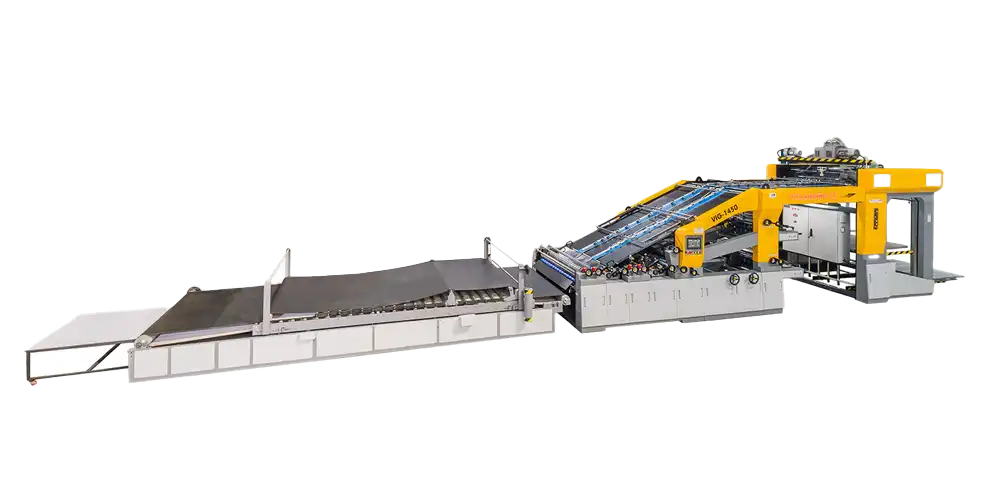

5 Ply Flute Laminator Machine – VIG 1300/1450/1650/1800

The 5 Ply Flute Laminator Machine is a Fully Automatic 5 PLY High Speed 5 Ply Flute Laminator Machine renowned for its user-friendliness, reliability, and exceptional engineering with high quality. While designing the machines VIG Graphics has considered all practical requirements of the Indian Corrugation Industry and more so, built the machine to the finer requirements of the operators to ensure smooth production and ease of operation.

The 5 Ply Flute Laminator Machine also called Large Format Pasting Machine, is an advanced piece of equipment designed to enhance the efficiency and quality of packaging production. This high-speed, fully automatic 5 Ply Flute Laminator Machine is tailored for businesses looking to upgrade their production lines with cutting-edge technology that delivers exceptional results. This Pasting Machine For Fruit Boxes is High-Speed, Fully Automatic 5 Ply Flute Laminator Machine with 5 Ply Board,

The 5 Ply Flute Laminator Machine is a high-performance, fully automatic laminating machine that brings efficiency, quality, and reliability to the packaging production process. Its advanced features, robust construction, and versatility make it an indispensable asset for any packaging manufacturer aiming to stay competitive and meet the highest standards of product excellence.

Download Brochure

To learn more about our product range, visit the Products Page.

At VIG Graphics, we are committed to empowering businesses with cutting-edge packaging solutions that drive efficiency, productivity, and profitability. Investing in this Large Format Pasting Machine means investing in the future of your production capabilities, ensuring higher productivity, better quality, and greater profitability. Experience the difference with VIG Graphics 5 Ply Flute Laminator Machine – where innovation meets excellence.

For more insights on user-friendly packaging machinery, check out VIG Graphics YouTube channel.

Specifications for 5 Ply Flute Laminator Machine

Servo motor technology for flute advance and hence extremely accurate in feeding
Anilox Glue roller to control the optimum thickness of the glue layer.
All rollers & roller ends are nickel-plated for corrosion resistance.
Equipped with heavy-duty Feeder with 11 suckers for improved accuracy.
Made with laser-cut sections for improved accuracy. No pre-molded sections were used.
Designed with easy access for cleaning and other operator-friendly features.
5 Ply Flute Laminator Machine has an easy setting for setting up jobs.
The machine is equipped with a double table feed system to reduce idle time & increase productivity.

The 5 Ply Flute Laminator Machine is an invaluable asset for any packaging manufacturer looking to enhance their production capabilities. Here are some of the key benefits this advanced machine offers:

Premium Quality: Experience high-quality laminating with user-friendly features that differentiate the machines.
Seamless Paper Feeding: Eleven sucker feeders ensure uninterrupted paper feeding, maximizing productivity and efficiency.
Precise Gum Control: Non-stop gum rollers provide precise control over gum application, reducing waste and ensuring consistency.
Accessible HMI Control: Easy access to HMI controls available in both English and regional languages, enhancing usability for operators.
Cost-Competitive Solutions: The 5 Ply Flute Laminator Machine offer cost-competitive alternatives to imported models, delivering exceptional value without compromising on quality or performance.
Comprehensive Services: Local installation, training, and after-sales support services, ensuring smooth operation and maximum uptime for customers.

Technical Specifications for 5 Ply Flute Laminator Machine

MODELS	VIG-1300		VIG-1450		VIG-1650	VIG-1800
Max Paper Size	1300 mm x 1300 mm		1450 mm x 1300 mm		1650 mm x 1300 mm	1800 mm x 1300 mm
Min Paper Size	450 mm x 450 mm		500 mm x 500 mm		500 mm x 500 mm	650 mm x 650 mm
Applicable Top Sheet	120 – 500 gsm				140 – 500 gsm
Laminating Layers	Face Paper + Corrugated (2 ply) = 3 ply Face Paper + Corrugated (2 ply) + Corrugated (2 ply) = 5 ply Face Paper + Corrugated (2ply) = 3ply → 3ply + Corrugated (2ply) + Corrugated (2ply) = 7 ply
Applicable Bottom Paper	Flute A,B,C,E,F
Face & Bottom Paper Size	Width & Length of Face Paper 8mm larger than Bottom Paper
Production Speed*(varies with sheet size)	5000 sheets/hour	5000 sheets/hour		4800 sheets/hour		4500 sheets/hour
Precision	± 1.5 mm
Power Load	23 kW		24 kW		25 kW	28 kW
Overall Dimensions	18 m x 2.2 m x 2.5 m		18 m x 2.4 m x 2.5 m		18 m x 2.5 m x 2.5 m	18 m x 2.7 m x 2.5 m
Weight (Approx)	7500 Kgs		8000 Kgs		8500 Kgs	9000 Kgs
