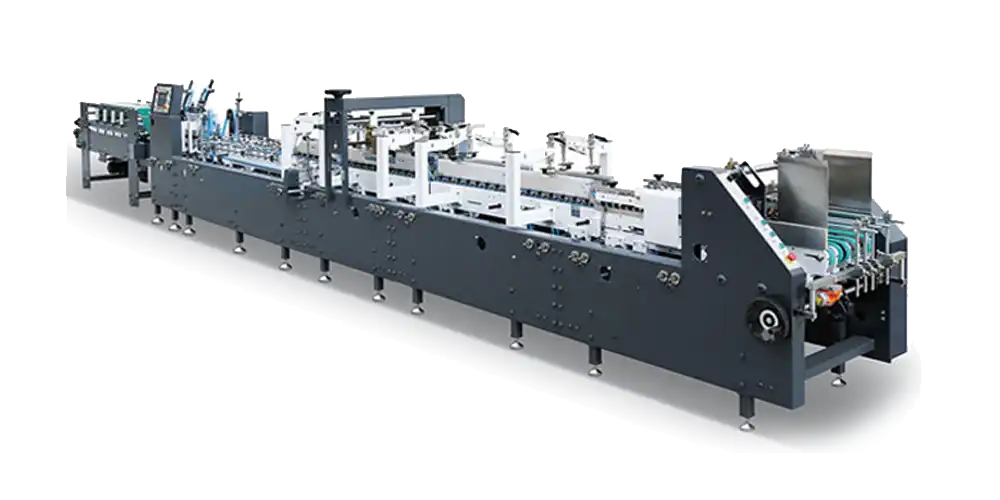

Specifications of GS Series High Speed Machine
- This GS Series High Speed Machine is suitable for straight-line, crash-lock bottom, double wall, 4 & 6 corner boxes. GS series is integrated with the most advanced concepts & technologies.
- Driven by ribbed V belt, which is more steady & accurate.
- Feeding part with servo motor control, improves machine adjusting speed of GS Series High Speed Machine.
- An affordable, cost-effective & complete state-of-the-art solution for the folding & gluing needs of today’s converter & market demands.
Technical Specifications
| Model | 650 GS | 800 GS | 1100 GS |
| Paper Material | Cardboard 210-800 gsm | A/B/E Corrugated | ||
| Max Speed | 400 m/min | ||
| Inching Speed | 10 m/min | ||
| Max Thickness of Folded Box | 12 mm | 20 mm | 20 mm |
| Max Blank Width | 650 mm | 800 mm | 1100 mm |
| Length x Width x Height | 13 x 1.4 x 1.8 m | 16.5 x 1.55 x 1.8 m | 16.5 x 1.7 x 1.9 m |
| Net Weight | 5 T | 6 T | 7.2 T |
| Total Power | 22.5 KW | 25.5 KW | 29 KW |
| Compressed Air | 6 bar | ||
| Air Compressor Capacity | 10 m3/h | ||
| Air Tank Capacity | 60 L | ||
