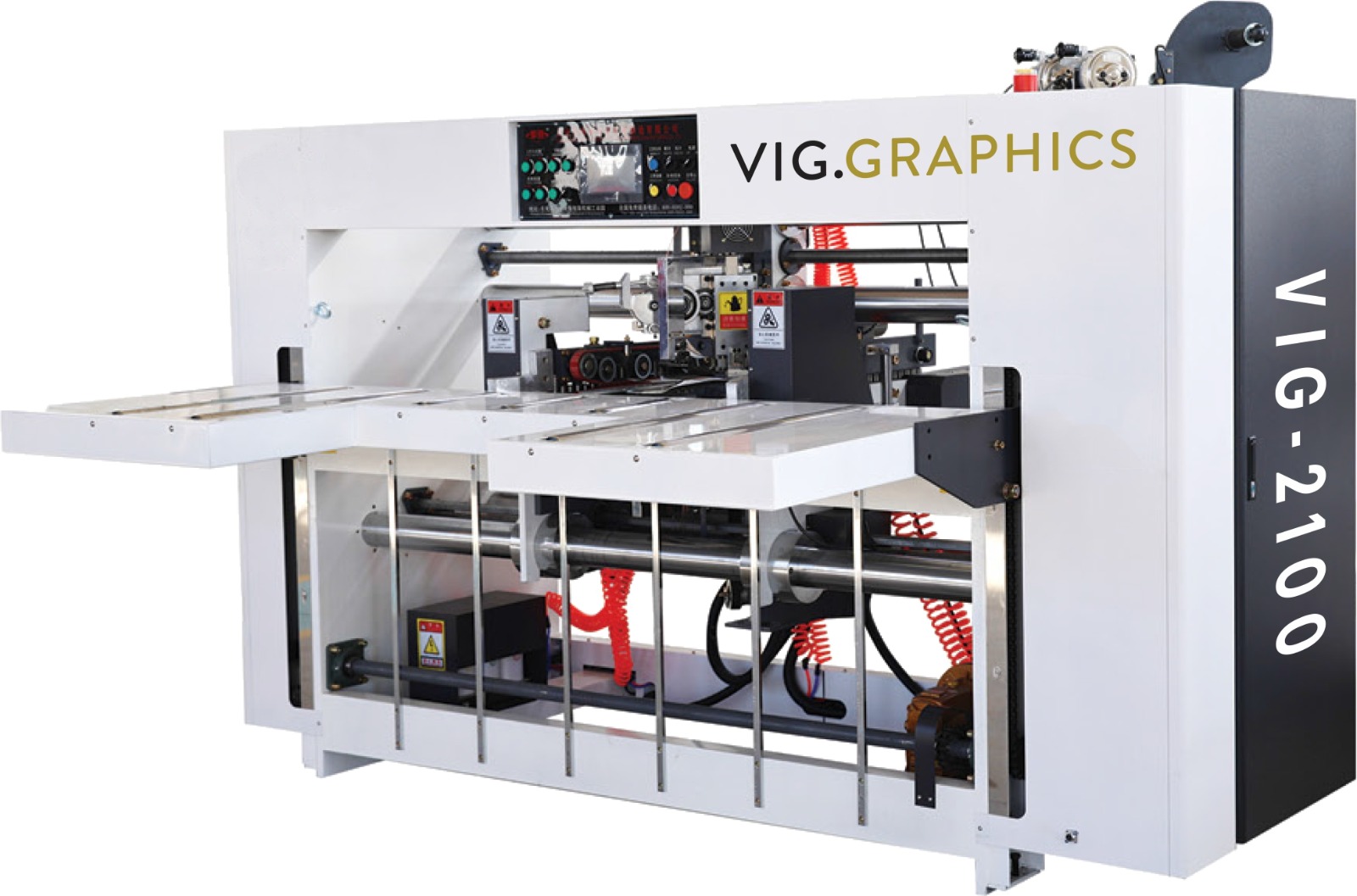

This advanced nailing machine is designed for high-efficiency carton box production, offering single, double, and reinforced nailing in a single pass. With rapid size changeover in under one minute and an intuitive HMI interface, it ensures ease of use even for unskilled operators. Equipped with a YASKAWA 4-servo motor and computerized nail distance adjustment, it delivers precision, consistency, and reliability. The machine supports automatic batch counting, requires minimal manpower, and is compatible with 3 to 5 ply standard corrugated boxes. With an impressive output of up to 500 nails per minute and nail spacing flexibility between 30 mm to 120 mm, it is an ideal solution for modern packaging lines seeking speed and performance.
Key Benefits of Flute Collector Machine
- Versatile Nailing Options: Supports single, double, and reinforced nailing in a single operation.
- Quick Size Adjustment: Fast size change in under 1 minute for different box dimensions.
- User-Friendly Operation: Operated via HMI control; can be handled by regular workers with ease.
- Automatic Batch Counting: Sends finished boxes to the conveyor end by presetting the quantity (1–99).
- Minimal Manpower Required: Only two operators needed for semi-finished to finished product handling.
- High-Precision Servo Motor: Equipped with a reliable YASKAWA 4-servo motor system.
- Computerized Nail Adjustment: Automatic control of nail spacing via computer interface.
- Wide Box Compatibility: Suitable for 3 to 5 ply standard corrugated carton boxes.
- Adjustable Nail Distance: Nail spacing can be set between 30 mm to 120 mm.
- High-Speed Output: Operates at a speed of up to 500 nails per minute.
To learn more about our product range, visit the Products Page.
At VIG Graphics, we are committed to empowering businesses with cutting-edge packaging solutions that drive efficiency, productivity, and profitability. Investing in this advanced laminator means investing in the future of your production capabilities, ensuring higher productivity, better quality, and greater profitability. Experience the difference with VIG Graphics – where innovation meets excellence.
For more insights on user-friendly packaging machinery, check out VIG Graphics YouTube channel.
SALIENT FEATURES OF THE MACHINE
- Capable of single, double, and reinforced nailing in a single operation, making it suitable for various customer requirements.
- Quick size changeover in under one minute, easily operable by a regular worker.
- Equipped with an HMI control system for user-friendly and efficient operation.
- Supports automatic batch counting; finished products can be sent to the end of the conveyor by setting a quantity (1–99).
- Requires only two operators for processing semi-finished products to fully finished output.
- Powered by a YASKAWA 4-servo motor for high precision and reliability.
- Nail distance can be adjusted automatically via computer control.
- Compatible with standard 3-5 ply corrugated carton boxes.
- Adjustable nail spacing: 30 mm to 120 mm.
- High-speed performance: up to 500 nails per minute.
Technical Specifications
| MODELS | 1300 | 1400 | 1500 | 1600 | 1800 |
| Max/Min Width | 1300 / 500 mm | 1400 / 500 mm | 1500 / 500 mm | 1600 / 500 mm | 1800 / 500 mm |
| Max Load Weight | 900 Kg | 950 Kg | 1000 Kg | 1050 Kg | 1100 Kg |
| Max Roll Diameter | 1650 mm | ||||
| Air Requirement | 6 Bar / 3 HP | ||||
| Power (Starting / Running Load) | 3P / 415 / 5 KW / 3 KW | – | |||
| Dimensions (W × L × H) | 1.8 x 4.4 x 1.2 m | 1.9 x 4.4 x 1.2 m | 2.0 x 4.4 x 1.2 m | 2.1 x 4.4 x 1.2 m | 2.3 x 4.4 x 1.2 m |
