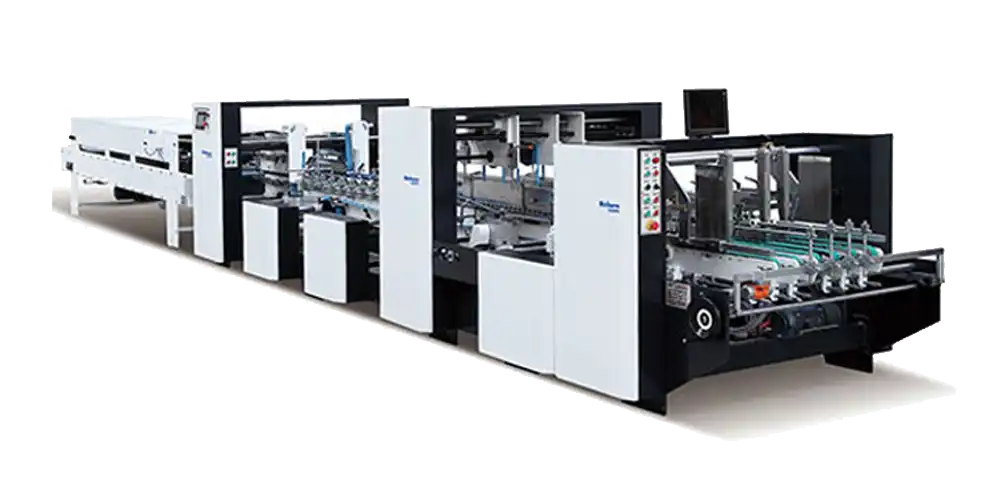

The AC Series High-Speed Folder Gluer Machine is a cutting-edge solution meticulously engineered to meet the diverse needs of the packaging industry, particularly for cardboard and corrugated packaging boxes. This advanced machinery combines speed, precision, and versatility, ensuring that every packaging box produced meets the highest standards of quality and functionality.
The Machine is an exceptional piece of equipment tailored for the demanding needs of the packaging industry. Its ability to handle various types of cardboard and corrugated materials, coupled with its high-speed performance and precision correction function, makes it an invaluable asset for any packaging operation. By ensuring that every box meets the required standards, the machine helps businesses deliver superior packaging solutions that protect and enhance their products. The AC Series High-Speed Folder Gluer Machine’s robust construction and user-friendly operation further contribute to its appeal, making it a reliable and efficient choice for high-volume packaging production.
To learn more about our product range, visit the Products Page.
At VIG Graphics, we are committed to empowering businesses with cutting-edge packaging solutions that drive efficiency, productivity, and profitability. Investing in this advanced laminator means investing in the future of your production capabilities, ensuring higher productivity, better quality, and greater profitability. Experience the difference with VIG Graphics – where innovation meets excellence.
For more insights on user-friendly packaging machinery, check out VIG Graphics YouTube channel.
Specification
The High-Speed Folder Gluer Machine is specially designed for all kinds of cardboard, and corrugated packaging boxes, has a correction function, and makes corrugated boxes perfectly meet the requirements of packaging.
FEEDER SECTION
Driven by independent motor,
feeding belt has a function of air
suction.
ALIGNER SECTION
Equipped with auto-correction device to correct the obliquity and ensure the correct feeding
BOTTOM-LOCK SECTION
Equipped with the upper and lower
gluing tank.
LOWER GLAING TANK
Equipped with the lower gluing tank.
FOLDING AND CLOSING SECTION
Folding section equipped with cone
pulley in left and right to adjust belt speed.
BOTTOM-LOCK SECTION
Equipped with squaring device, can
effectively avoid the “scissors mouth” phenomenon of corrugated products.
Technical Specifications
| Model | 1200 AC | 1450 AC | 1600 AC |
| Paper Material | Cardboard 210-800 gsm | A/B/E Corrugated | ||
| Max Speed | 280 m/min | ||
| Total Power | 12 KW | 20 KW | 20 KW |
| Weight | 8 T | 9 T | 10 T |
| Dimensions | 13.5 x 1.85 x 1.6 m | 13.5 x 2.1 x 1.6 m | 15 x 2.3 x 1.6 m |
