Specification
- Newly designed lead edge feeder with precise feeding system provides more accurate and positive feeding than ever
- Die Cutting Part: Safety window & Pneumatic die-chase locking system. Air Floating device makes the Die-Cutting Plate go in & out easily for minimum wear out.
- Electrical Part: All electrical parts are sourced from internationally recognized brands like Fuji Siemens, Schneider, Omron, Delta.
- Pneumatic Clutch: Long life, low noise, brake quickly with strong driving force. Installed according to European Export Standards
- Main Chain Drive: The main Reynold chain is imported from Britain that has minimum error of length, high tensile & anti-wear.
- Machine is equipped with different sensors to ensure machine and man safety.
- High-strength gripper and advanced gripper opening system which can adopt to a variety of corrugated board.
Edge-gripper paper waste system realizes the four edges waste stripping.
Technical Specifications
MODEL | MY-1300 | MY-1500 | MY-1650 |
Max Paper Size | 1320 x 940 mm | 1510 x 1120 mm | 1670 x 1200 mm |
Min Paper Size | 450 x 450 mm | 450 x 500 mm | 500 x 550 mm |
Max Die Cutting Size | 1300 x 920 mm | 1490 x 1100 mm | 1650 x 1180 mm |
Max Die-Cutting Pressure | 350 N/cm2 | 380 N/cm2 | 400 N/cm2 |
Applicable Corrugated Paper | 3-10 mm | 3-10 mm | 3-10 mm |
Max Die Cutting Speed | 5000 sheets/h | 4800 sheets/h | 4500 sheets/h |
Total Power | 28.5 KW | 28.5 KW | 35 KW |
Weight | 18.5 T | 21.5 T | 26 T |
Dimensions | 7080 x 2365 x 2346 mm | 7400 x 2380 x 2356 mm | 8500 x 2980 x 2450 mm |

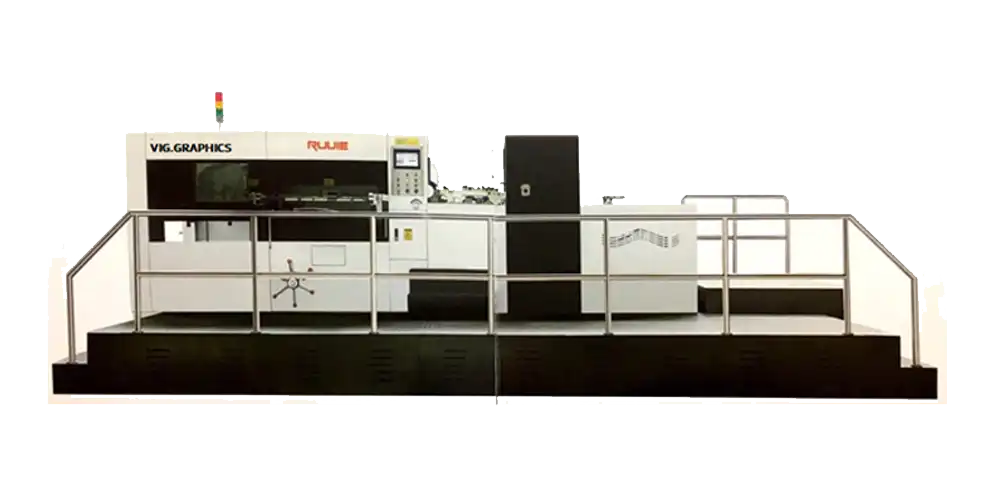

Our cutting-edge lead edge feeder, equipped with stripping capabilities, ensures seamless and precise operations, setting new benchmarks in the industry. Explore the features that make VIG Graphics a leader in innovative technology. Trust us to redefine your production experience. Discover the future of industrial excellence”
