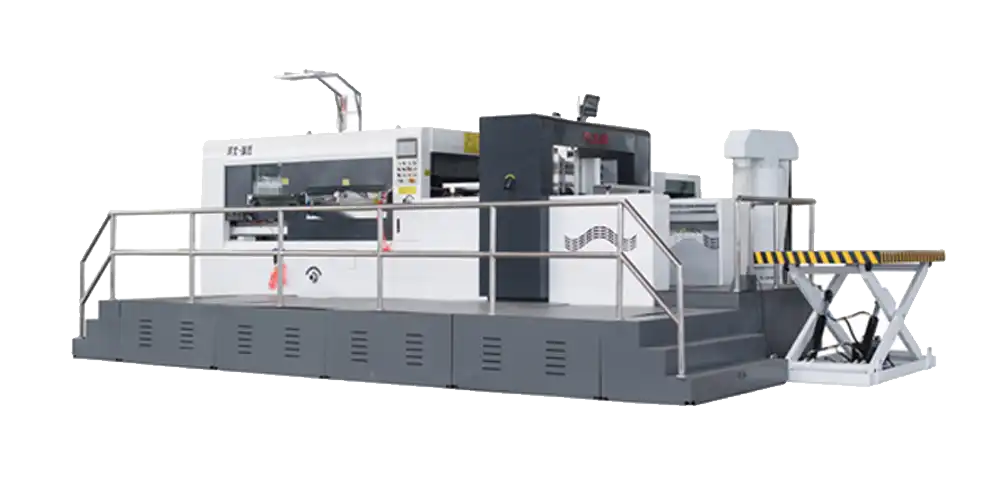

Specifications of Lead Edge Feeder Machine
- Newly designed Lead Edge Feeder Machine with precise feeding system provides more accurate and positive feeding than ever
- Die Cutting Part: Safety window & Pneumatic die-chase locking system. Air Floating device makes the Die-Cutting Plate go in & out easily for minimum wear out.
- Electrical Part: All electrical parts are sourced from internationally recognized brands like Fuji Siemens, Schneider, Omron, Delta.
- Pneumatic Clutch: Long life, low noise, brake quickly with strong driving force. Installed according to European Export Standards
- Main Chain Drive: The main Reynold chain is imported from Britain that has minimum error of length, high tensile & anti-wear.
- The Lead Edge Feeder Machine is equipped with different sensors to ensure machine and man safety.
- High-strength gripper and advanced gripper opening system which can adopt to a variety of corrugated board.
- Advance push and pull lay for registration can assure the die-cutting precision.
- Combination of PLC and HMI makes the Lead Edge Feeder Machine consumer friendly.
- Electrical panels are cooled by an air convection device to protect the electrical components and run steadily at a controlled temperature.
Technical Specifications
| MODEL | MY-1300 | MY-1500 | MY-1650 |
| Max Paper Size | 1320 x 940 mm | 1510 x 1120 mm | 1670 x 1200 mm |
| Min Paper Size | 450 x 450 mm | 450 x 500 mm | 500 x 550 mm |
| Max Die Cutting Size | 1300 x 920 mm | 1490 x 1100 mm | 1650 x 1180 mm |
| Max Die-Cutting Pressure | 350 N/cm2 | 380 N/cm2 | 400 N/cm2 |
| Applicable Corrugated Paper | 3-10 mm | 3-10 mm | 3-10 mm |
| Max Die Cutting Speed | 5000 sheets/h | 4800 sheets/h | 4500 sheets/h |
| Total Power(Stripping) | 24.5 KW28.5 KW | 24.5 KW28.5 KW | 32 KW35 KW |
| Weight(Stripping) | 16.5 T18.5 T | 19.5 T21.5 T | 23 T26 T |
| Dimensions(Stripping) | 5900 x 2365 x 2346 mm7080 x 2365 x 2346 mm | 6200 x 2380 x 2356 mm7400 x 2380 x 2356 mm | 7000 x 2980 x 2450 mm8500 x 2980 x 2450 mm |
